Emlid Reach RS2+

Emlid Reach RS2+

$2,499.00 USD
$2,599.00 USD $2,499.00 USD
Sale Sold out

Tracking GPS, GLONASS, Galileo and BeiDou signals, the RS2+ can provide a fixed solution in seconds and maintain accuracy in corridors, under tree canopy, and in other challenging environments.







Reach RX

Reach RS2

Reach RS2+









Rover with NTRIP corrections over BT

√

√

√

Rover with NTRIP corrections with hotspot to receiver



√

√

Rover with NTRIP corrections with sim card in receiver





√

Rover for PPK processing



√

√

Rover with Correction Input over Serial



√

√

Rover with Correction Input over TCP



√

√

Rover with Reach RS2/RS2+ LoRa corrections



√

√

Base sending corrections over LoRa Radio



√

√

Base sending corrections over NTRIP



√

√

Base sending corrections over NTRIP with internal sim card





√

Base sending corrections over Local NTRIP to drone



√

√

Base sending corrections over Bluetooth



√

√

Base sending corrections over Serial



√

√

Base sending corrections over TCP



√

√

Base station for PPK processing



√

√

Base station for Static, PPP processing



√

√



The Reach RS2+ builds on the success of the Reach RS2, and adds an upgraded cellular modem.  The RS2+ LTE modem allows users to connect the RS2+ directly to the internet by installing a sim card in the Reach RS2+.

Data Collector Options: The ReachView 3 application is available for download for free on both iOS and Android.


A Quick Fix

Tracking GPS, GLONASS, Galileo and BeiDou signals, the RS2+ can provide a fixed solution in seconds and maintain accuracy in corridors, under tree canopy, and in other challenging environments.  Check out this RS2 Accuracy Test for more.

OPUS PPP
Support

Get centimeter-precise results in any place on Earth. Process RINEX files in an online service and get position with absolute accuracy.  Compatible with Online Positioning User Service, Leica Spider Business Center Post Processing and more.



GPS, GLONASS, BeiDou, Galileo, and QZSS

L1OF, L2OF, L1C/A, L2C,E1B/C, E5b, B1I B2I



Built-in UHF Radio

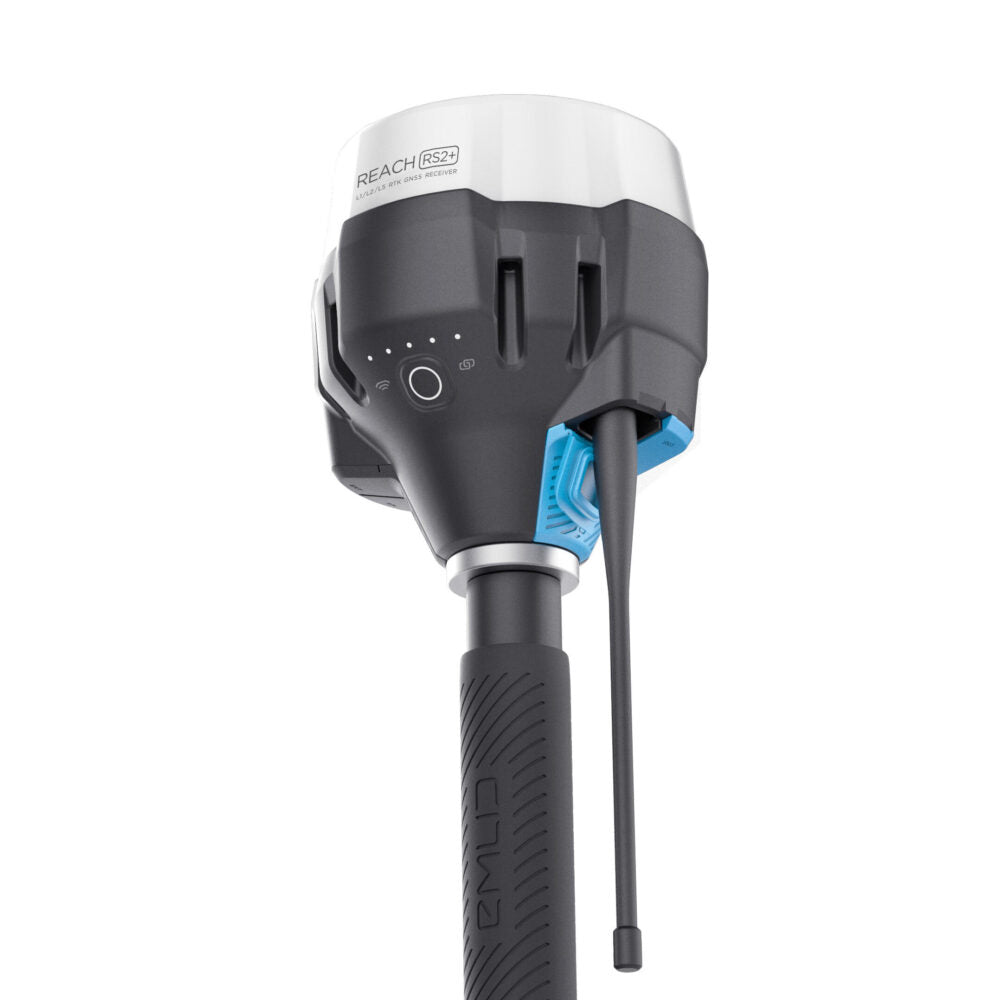

The RS2+ includes an internal 915 Mhz UHF LoRa radio, with line of site range up to 8 km.  Environment is a significant factor in the range of the LoRa radios.  Obstructions may decrease the range, while some users have noted range exceeding 8 km.

Long Lasting

On a single charge, the Reach RS2+ lasts up to 22 hours, even in colder weather. When a charge is needed, the RS2+ can use a wall charger or a power bank over USB-C. Its durable design (IP67) allows it to perform in even the most inclement conditions.


Accuracy - Side-by-Side Specs

Accuracy (mm) Emlid Reach RS2+ Topcon Hiper VR Trimble R10 Leica GS18
Static Horizontal  4 + 0.5 ppm 3 + 0.1 ppm 3 + 0.1 ppm 3 + 0.1 ppm
Static Vertical 8 + 1 ppm 3.5 + 0.4 ppm 3.5 + 0.4 ppm 3.5 + 0.4 ppm
RTK Horizontal 7 + 1 ppm 10 + 1 ppm 8 + 1 ppm 8 + 1 ppm
RTK Vertical  14 + 1 ppm 15 + 1 ppm 15 + 1 ppm 15 + 1 ppm



Data Collector Compatibility

There are a wide range of data collectors that are compatible with the RS2+, many are Bluetooth compatible.  The most popular data collectors for the Reach RS2+ are:

ReachView 3 is Now Available

User-friendly software for data collection created by Emlid for Android and iOS.

Features Include:

  • Coordinate systems support. More than a thousand coordinate systems are available. The app has built-in support for grid and geoid transformations.
  • Different units of measurement. The pole height and stakeout distance automatically work in feet or meters, depending on the project’s coordinate system.
  • Ability to handle complex projects. Easily load thousands of points and smoothly control the map pans and zooms.
  • Storing the data in the app. You can now access your projects at any time with no need to turn on the receiver.
  • Simple data collection. Collect points by averaging or with just one click.
  • Quick data export. Export and share collected data promptly using any file sharing app on your phone.
  • Switching NTRIP profiles. You can easily switch between multiple NTRIP profiles – all the credentials are stored on the phone.

Technical Specification Sheet for Reach RS2+
