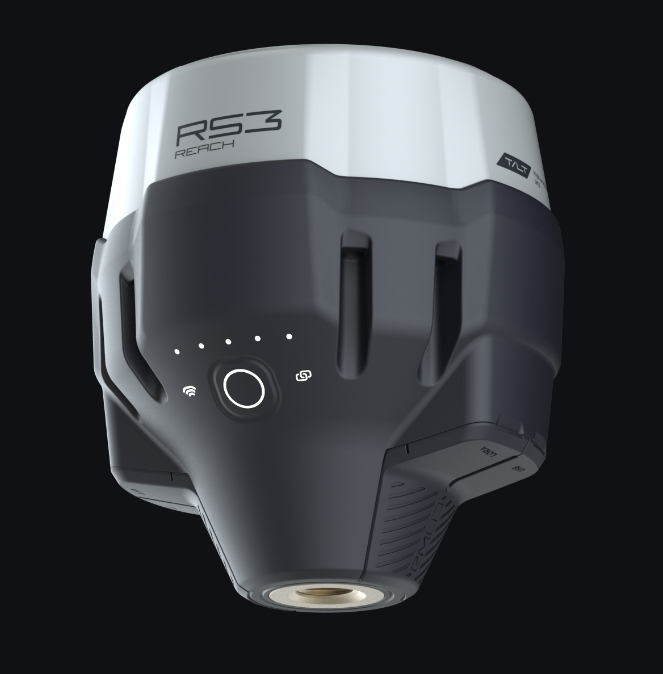

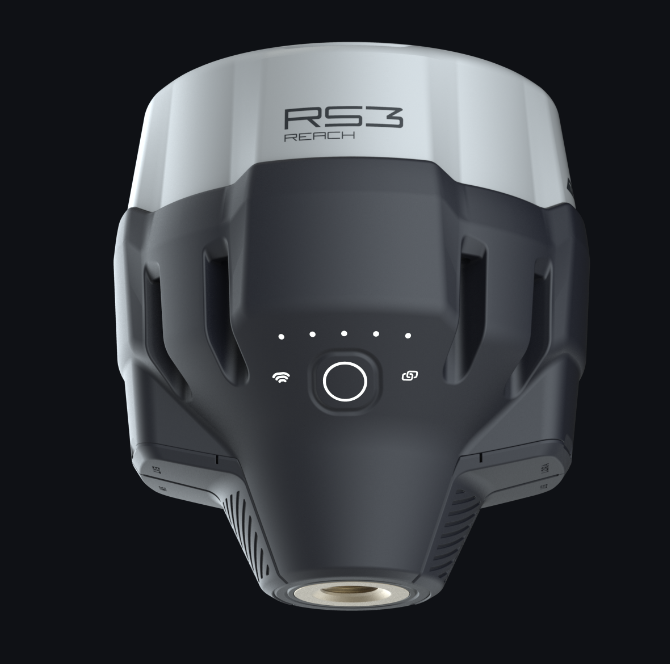

EMLID REACH RS3

The REACH RS3 - Emlid's newest Flagship RTK GNSS receiver, now with tilt compensation! The IMU-based tilt compensation in Reach RS3 enables you to make measurements with up to 60 degrees of tilt while still staying within 20 mm of accuracy.

Reach RS3 continuously measures and corrects tilt in real-time to keep you on target. Survey grade precision, even in hard-to-reach spots. Out of the box, your RS3 is Calibration-free, immune to magnetic disturbances, and has Quick initialization which allows you to get up and running within moments of exiting your car.

Some product specs:

Multi-band base and rover
IMU tilt compensation
LTE modem
Dual-band radio

GPS/QZSS, GLONASS, BeiDou, and Galileo

L1C/A, L2C, L1OF, L2OF,B1I, B2I, E1B/C, E5b

RINEX logging and PPP support
Up to 22 hours on 1 charge
Built-in LTE modem

NTRIP
Base and Rover
Work in RTK with VRS or a single baseline CORS network. You
can also connect another GNSS receiver as an NTRIP base using Emlid NTRIP Caster.

Durability

IP67
RS3 is waterproof up to a one meter depth. Silicone plugs completely seal and protect all connectors from water and dust.

Industrial battery
The Reach RS3 Li-Ion battery handles high and low temperatures well and over 2000 cycles of charging and discharging while maintaining its original capacity.
While others are hot-swapping batteries, your Reach just keeps working.

-20 to +65 ºС
We extensively tested Reach RS3 in conditions that simulate the coldest winters and hottest summers.

Impact-resistant
The body of the Reach RS3 is made of polycarbonate and coated with elastomer. The combination of these materials makes your Reach RS3 drop resistant and ready for the harshest conditions.

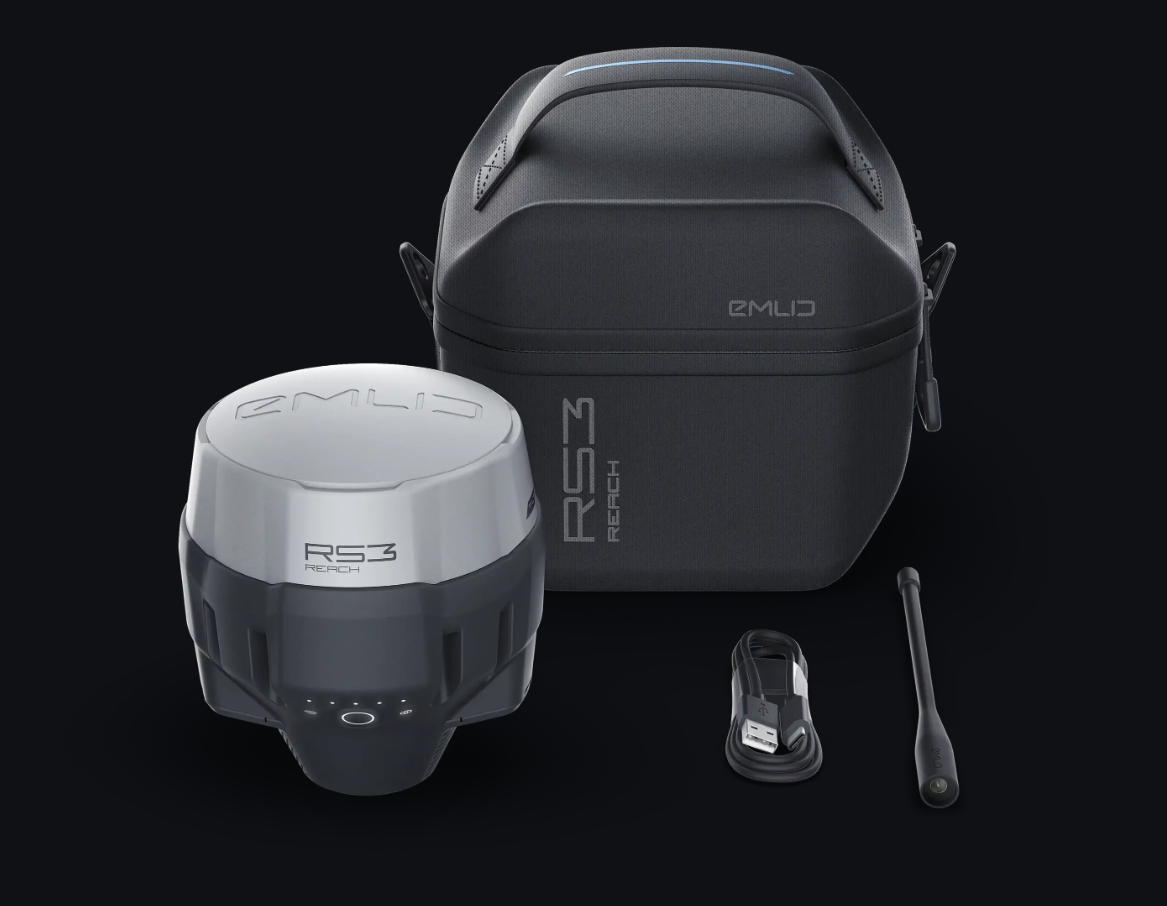

Package Includes

Reach RS3, LoRa antenna, USB cable, and Carrying case with a strap
